LIQUID CHILLERS MINI SERIES
. . . for cooling water, emulsions or oil
The M series was developed to meet our customers' requirements when seeking compact dimensions and minimum costs. With these units, the cooling of different fluids in industry with a cooling capacity of up to 3.5 kW is possible. The standard designs also continue to offer leeway for different special requirements.

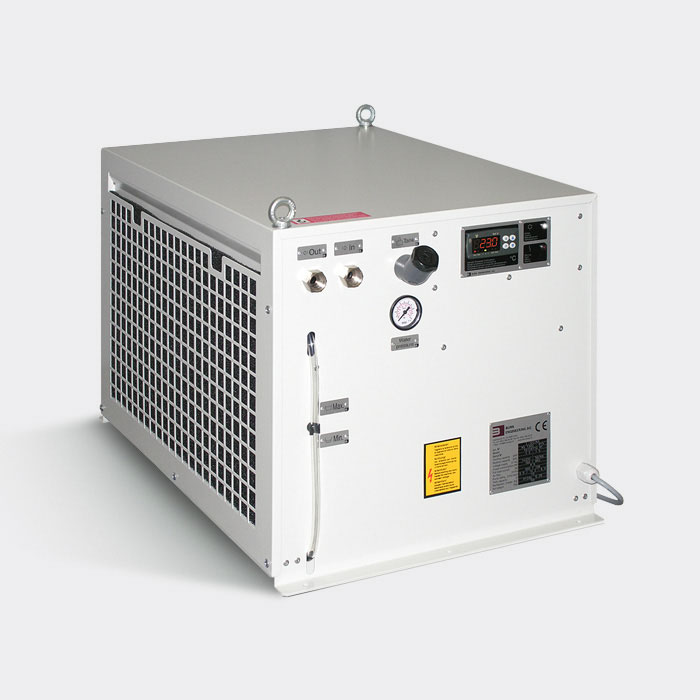

M_ 800 . . . M_ 2000
|
|
The M series subdivides into units for cooling:
• Water with additives (MW Types)
• Emulsions or oil (ME Types without coolant tank)
• Emulsions or oil (MO Types with built-in coolant tank)
Characteristics of the standard design:
DESIGN
• Compact, flat structure
• Replaceable/washable air inlet filter mat
• Good accessibility to electric box and components for maintenance
• Cooling liquid tank is easy to remove from the unit for maintenance/cleaning
COMPONENTS
• Air-cooled refrigeration unit with fully hermetic compressor, air outlet at the rear
• CFC-free coolants R134a or R404A
• Closed, unpressurized cooling liquid tank made of plastic
• High performing centrifugal pump or volumetric high pressure pump
• Electronic PID temperature controller with digital display
• Display of warnings/faults using signal lamps and potential-free contacts |
|
