LIQUID CHILLERS   SLIM SERIES
. . . for cooling water, emulsions or oil


The S series is characterised by a narrow, high structure with very compact dimensions and offers a solution in considerably confined areas with reduced floor space. With these units many liquids in industry can be cooled with a cooling capacity of up to 5.5 kW. The standard designs enable meeting special requirements if necessary.

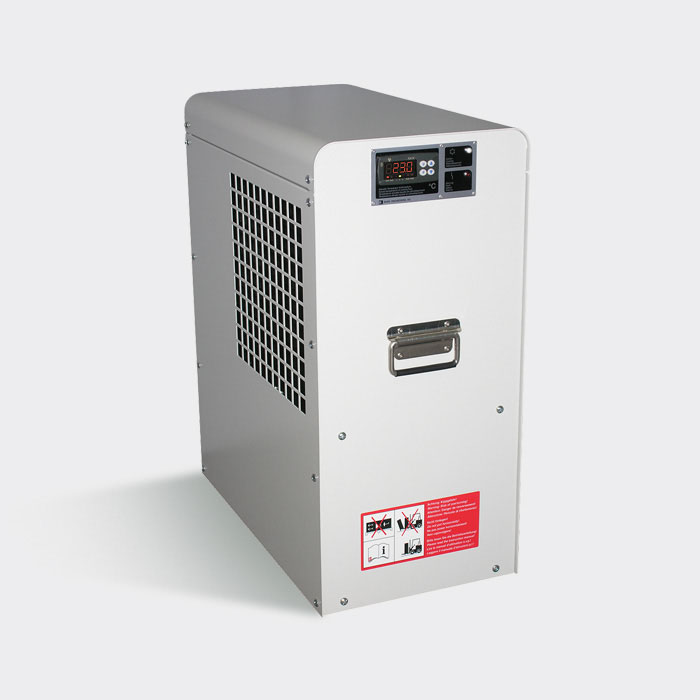

S_ 800 . . . S_ 2000


  The S series subdivides into units for cooling:
•  Water with additives (SW Types)
•  Emulsions or oil (SE Types without coolant tank)
•  Emulsions or oil (SO Types with built-in coolant tank)


Characteristics of the standard design:

DESIGN
•  Narrow, extremely compact structure
•  Replaceable/washable air inlet filter mat
•  Sufficient accessibility to electric box and components for maintenance
•  Cooling liquid tank is easy to open for maintenance/cleaning

COMPONENTS
•  Air-cooled refrigeration unit with fully hermetic compressor, air outlet on the side
•  CFC-free coolant R134a
•  Closed, unpressurized cooling liquid tank made of plastic
•  High performing centrifugal pump or volumetric high pressure pump
•  Electronic PID temperature controller with digital display
•  Display of warnings/faults using signal lamps and potential-free contacts
