LIQUID CHILLERS   WASSERKÜHLER SERIES
. . . for cooling water


The WK series is our original range and, since 1997, has met the needs of economic and tried and tested water chillers for the machine industry. The standard designs with a cooling capacity of up to 6.5 kW offer several possibilities for individual requirements and options.

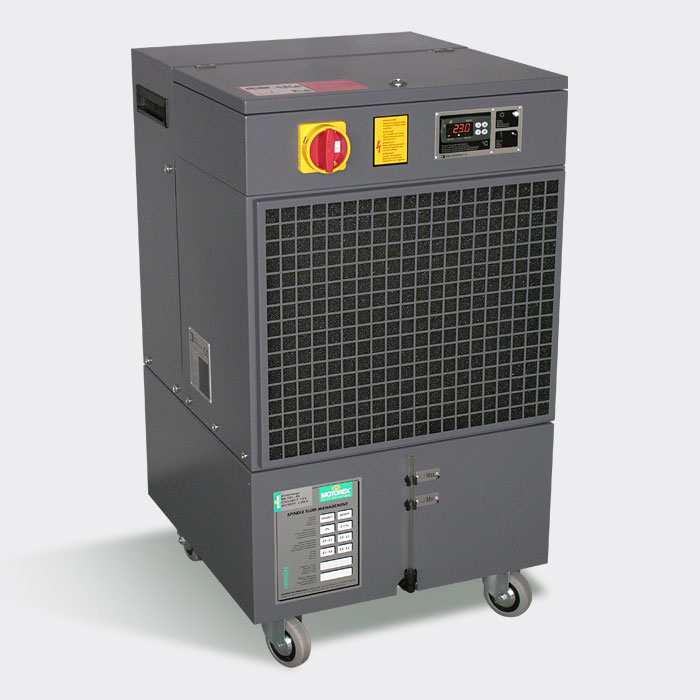

WK 1800 . . . WK 2800

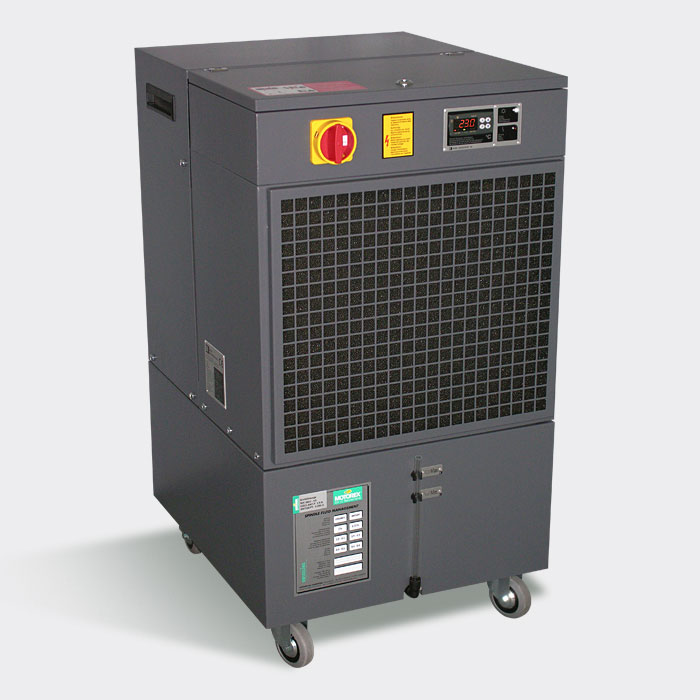

WK 3500 . . . WK 4500

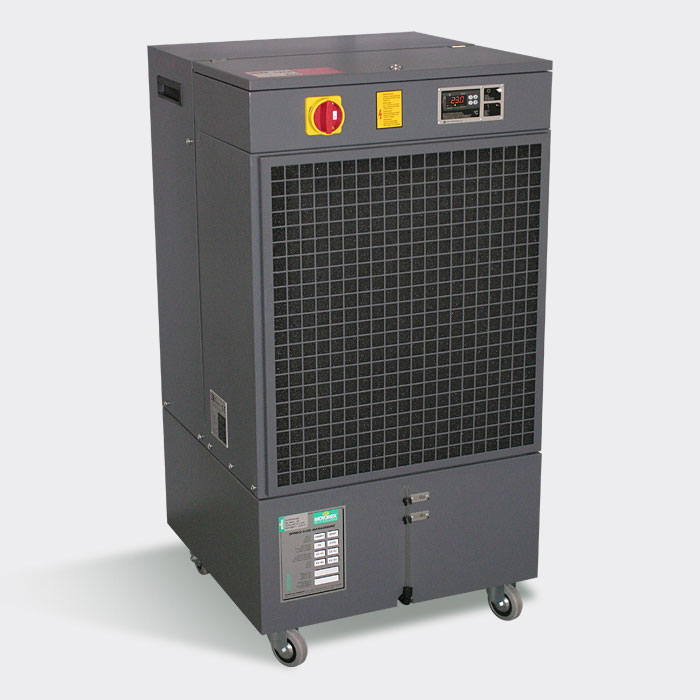

WK 5800 . . . WK 6500
  Characteristics ot the standard design:

KONSTRUKTION
•  Functional, maintenance-friendly structure
•  Replaceable/washable air inlet filter mat
•  Optimum accessibility to electric box and components for maintenance
•  Cooling water tank is easy to open for maintenance/cleaning
•  High mobility through rollers (2x steerable, 2x fixed)

KOMPONENTEN
•  Air-cooled refrigeration unit with fully hermetic compressor, air outlet at the rear
•  CFC-free coolant R404A
•  Closed, unpressurized cooling water tank made of stainless steel
•  High performing immersible pump
•  Electronic PID temperature controller with digital display
•  Display of warnings/faults using signal lamps and potential-free contacts
